DESCRIPTION:
JR100-T Coin Operated Binoculars is specialized in tour area for operator,of which completely meet needs to sightseeing far away for tourist, suitable for amateur to use frequently. JR10-T Coin Operated Binoculars can be used in different weather and environment,it can be suffered various weather outdoor.JR100-T Coin Operated Binoculars will do its best to earn more value for operator with easy operation, excellent optical performance, stable electricity, durable frame,fashionable appearance and highly cost effective.
* Easy operation: As a amateur off operator or tourist, the operator can erect binoculars easy outdoor to earn more money,tourist can use binoculars to enjoy viewing by sightseeing after inserting coin indicated.

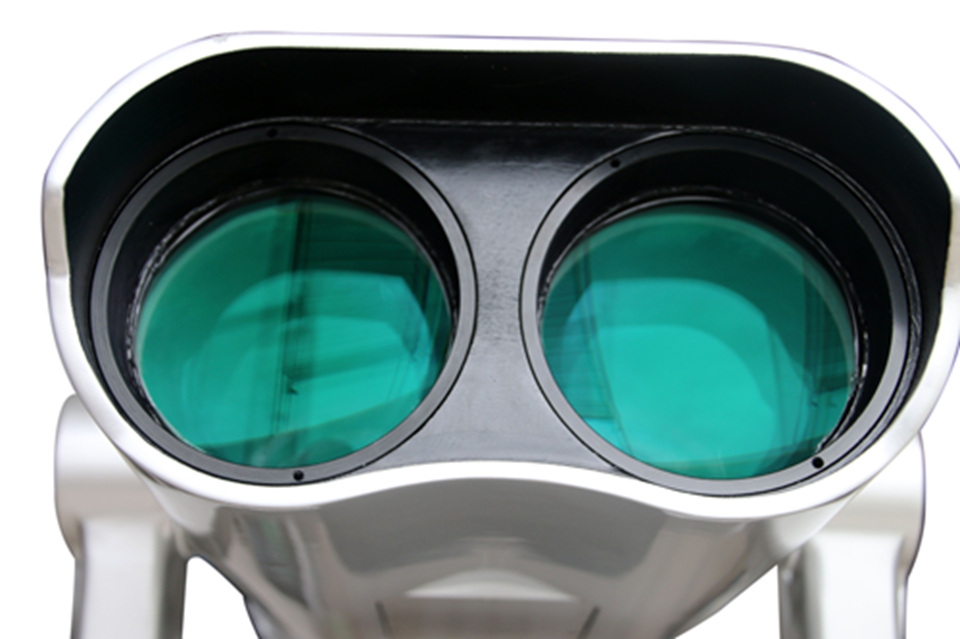

* Excellent optical performance: Enable tourist obtain sharper and clearer image under different light by using binoculars, which is latest optical system and image optimized by professional computer.
* Stable electric performance: The precise integrated circuit timing module is latest designed with low power dissipation and the main control system is designed for 100% waterproof, ensure electricity stable and maintenance cost down.

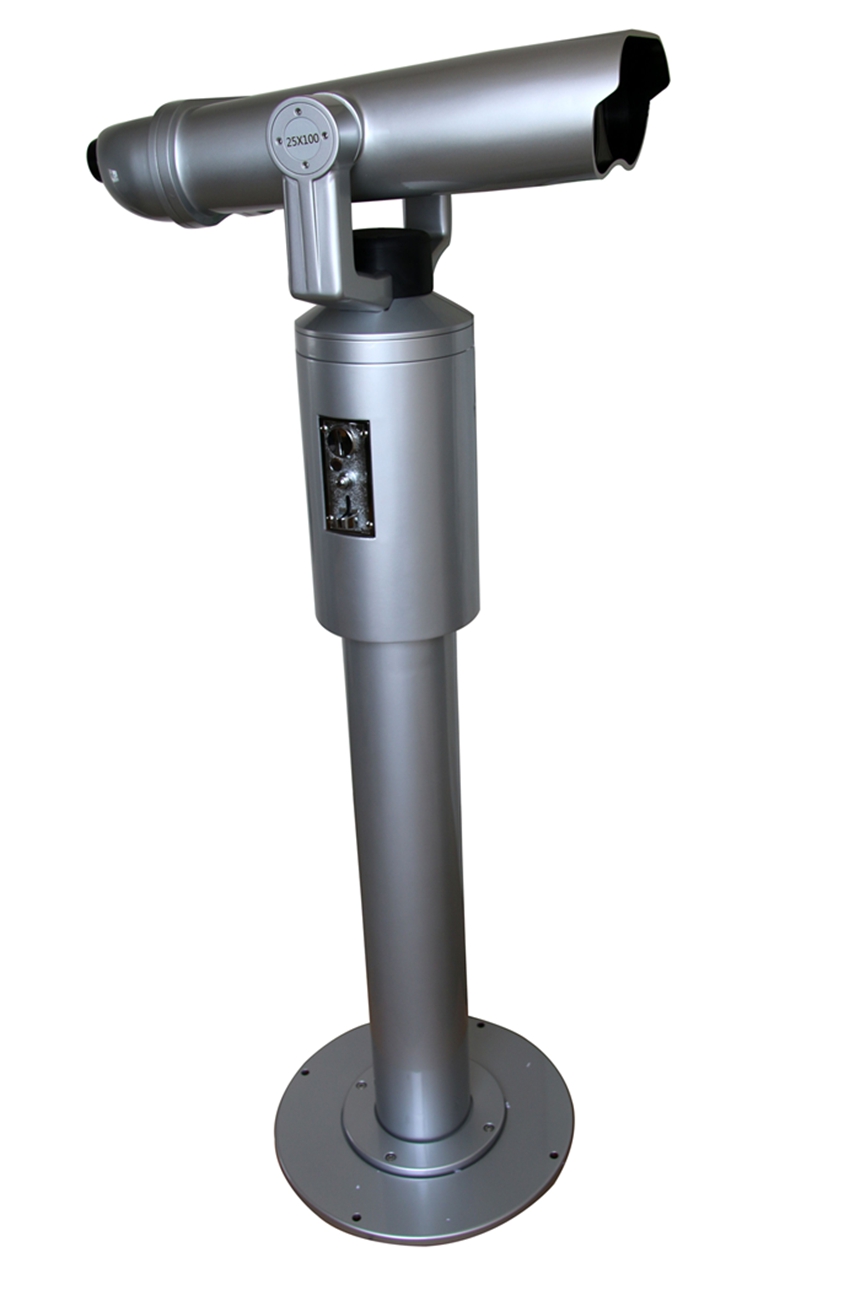

* Durable frame: The body,column and base for JR100 binoculars are all made of metal,which vastly suitable for different operation environment. 360°rotating mechanism can fulfill panoramic viewing unlimited.
* Fashionable appearance: The appearance designed by patent with artistic, striking, novel and fashionable streamlining style catch tourist’s eye to earn much money for operator.
Main Specification
| Optical performance |
| Monocular or Binoculars |
Binoculars |
| Magnification |
25x or 40x optional |
| Exit pupil (mm) |
4 |
| Eye relief (mm) |
14 |
| Field of view (Angle ) |
2°30′ |
| Field of view (m/1000m) |
45 |
| Resolution |
2.4″ |
| Objective diameter（mm） |
100 |
| Interpupillary distance range （mm） |
65 |
| Diopter |
Free focus to afocal |
| Electrical performance |
| Power |
DC4.5V ( 3 pcs No.5 battery |
| Stand-by time |
one years |
| Operation time |
90 days (depend on capacity of battery) |
| Adjust control time |
5-9995 sec.adjustable,factory setting 60sec. |
| other function |
1.Continuously insert coin, timer auto-accumulate |
| 2.Low power alarm: When glint "--" alarm on screen,change battery please. |
| 3.Coin tally function: Coin can be saved and accumulated in time, don't clear away without power |
| 4.Recognizing different coin: When inserting coin is different with the coin recognized in diameter and thickness,the coin will not be inserted please press 'return' key to return coin inserted |
| Application temperature |
-15℃ ─ 50℃ |
| Mechanism performance |
| The level of rotation angle |
Free rotation,no limited |
| Angle of pitch |
±30°Tightness adjustable continuously |
| Waterproof |
100% waterproof outdoor |
| Size(main body)LxWxH (mm) |
620x360x260 |
| Complete machine height(mm) |
1400 (from eye spot to ground) |
| Net weight (kgs) |
68 for JR-100T(64 for JR-100B) |
| Packing |
Main binoculars 720x400x460 (26kgs) |
| Base 550x550x100 (29kgs) |
| 1200x260x260 (19kgs,15kgs for jr-100B) |
|
