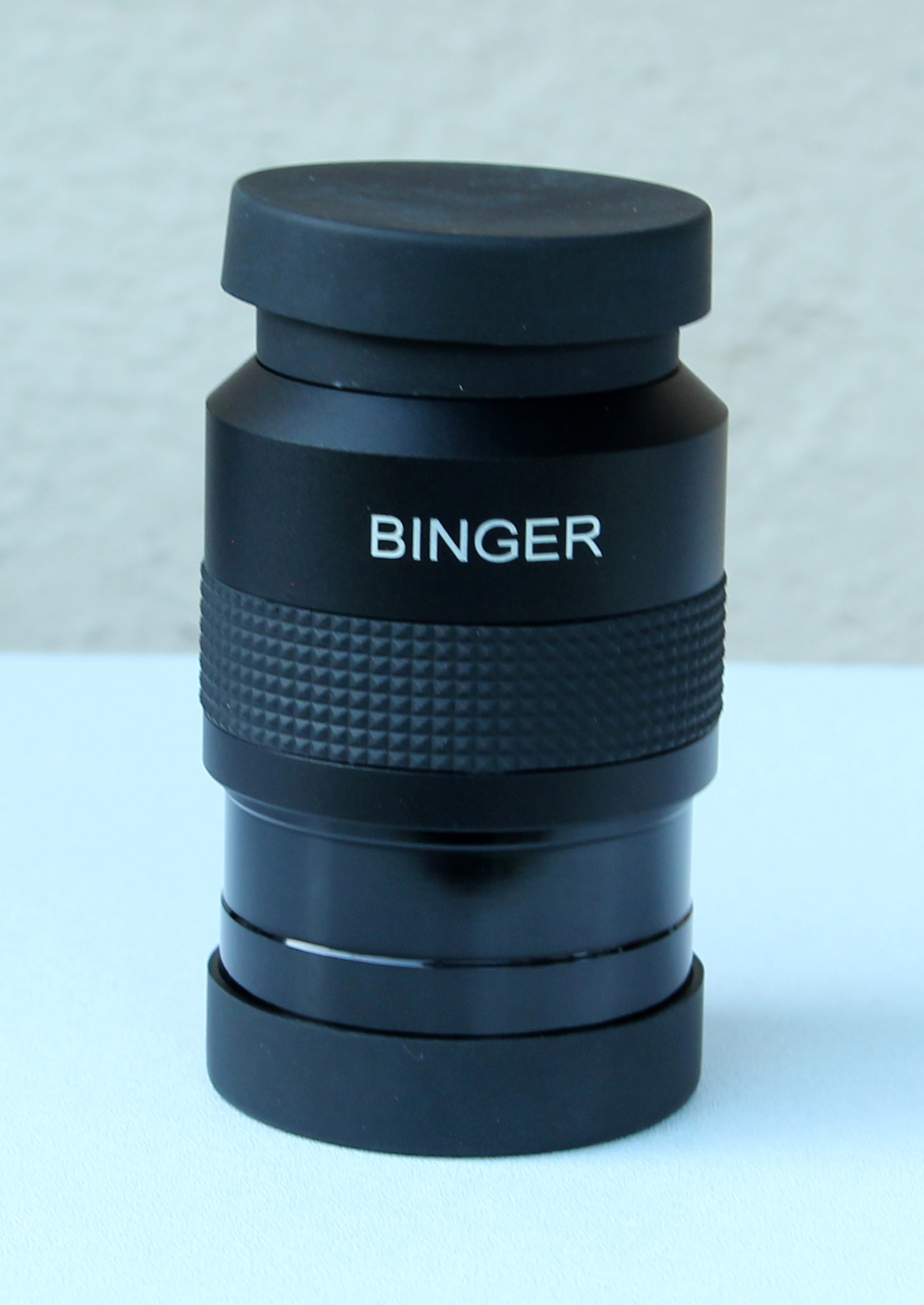

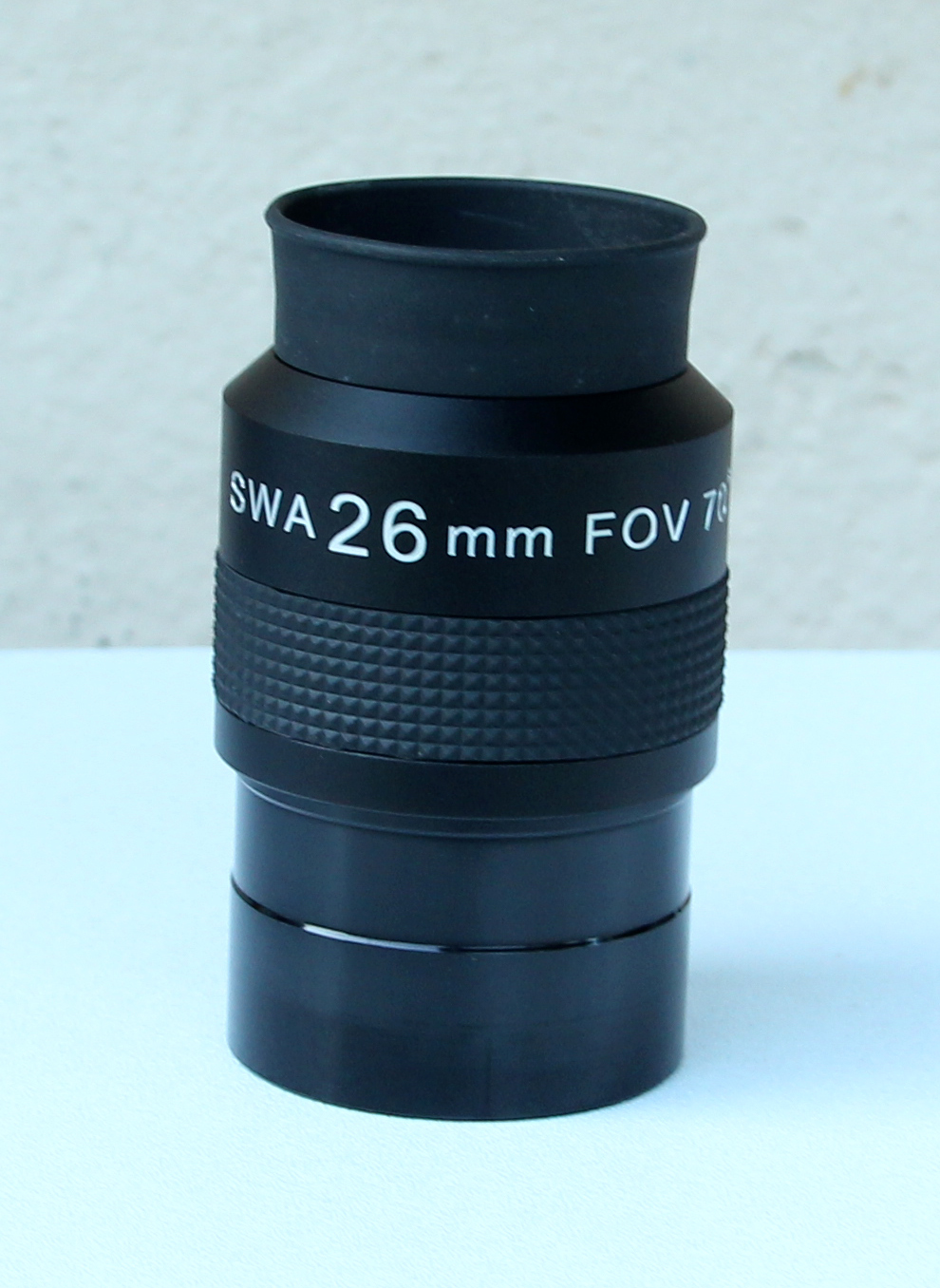

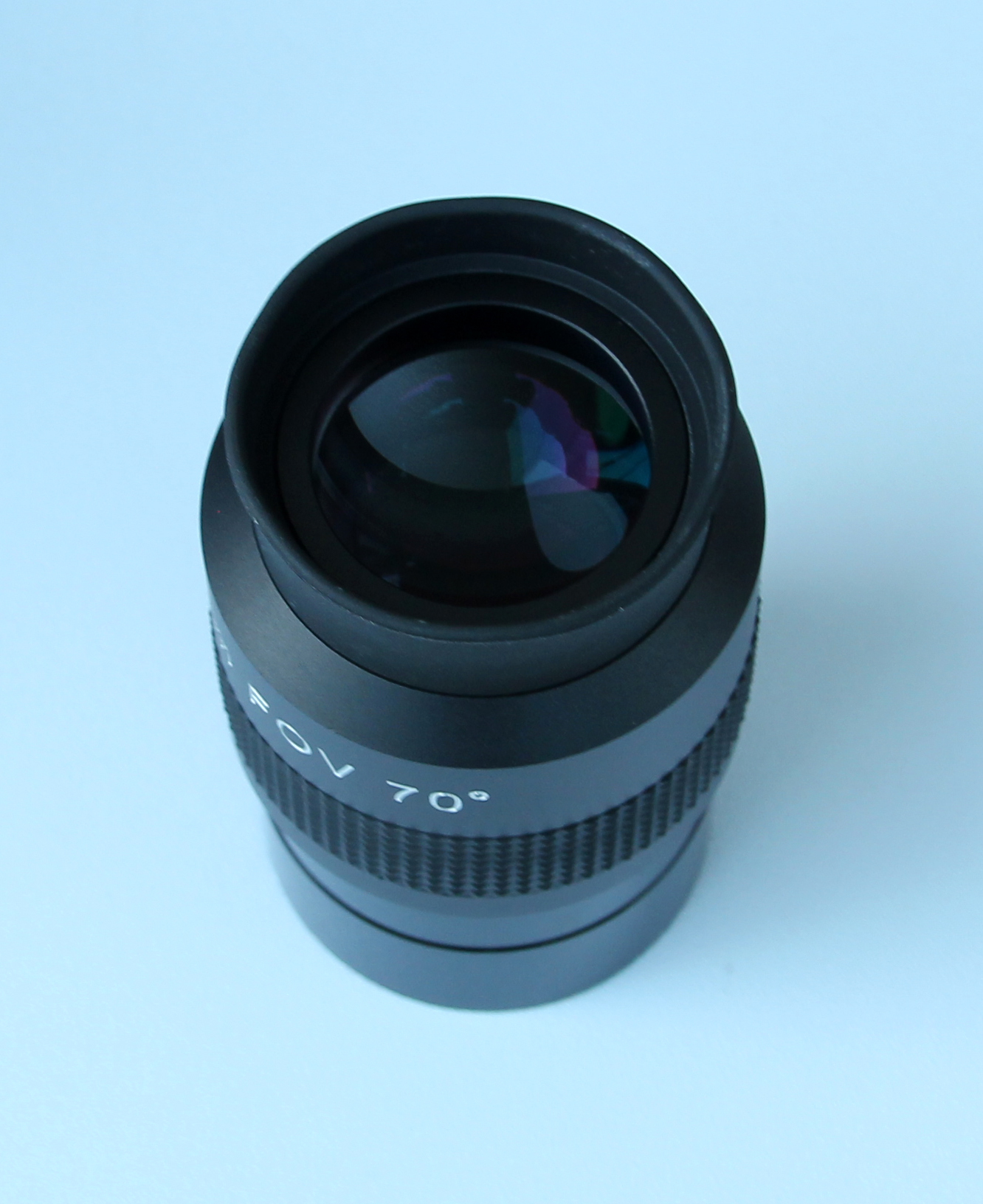

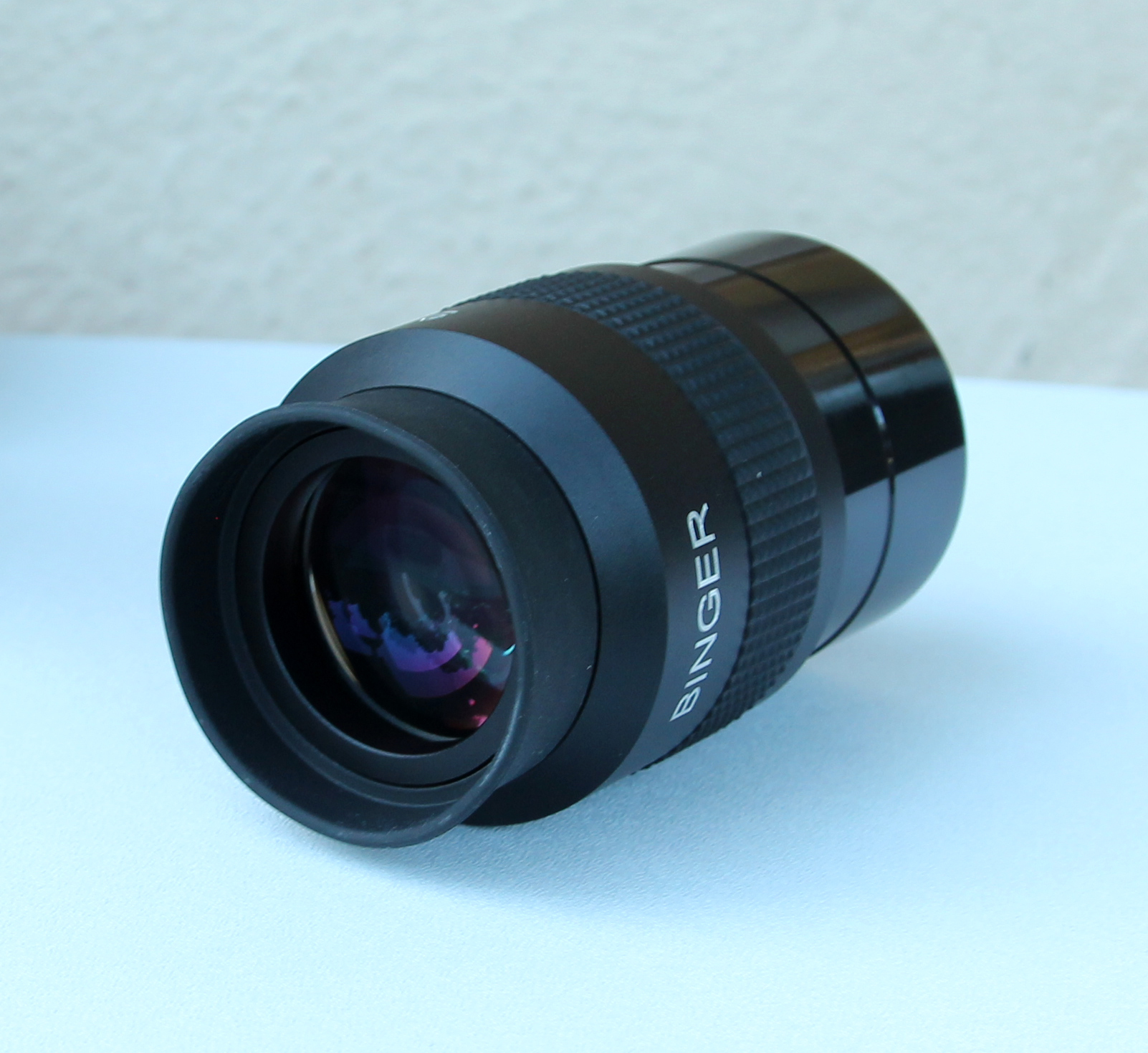

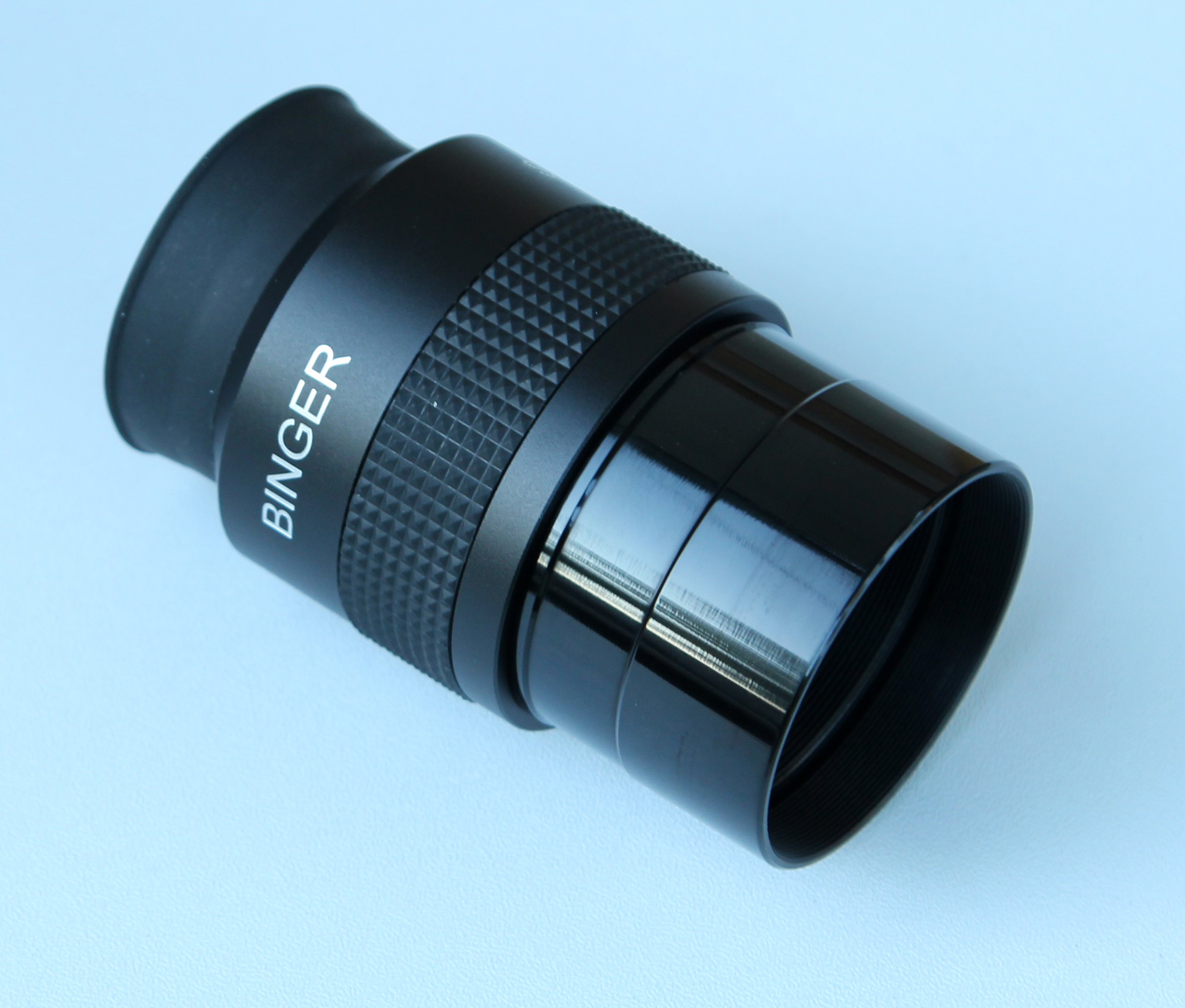

Name:BINGER SUPER WIDE ANGLE LENS SWA26
Details:
      Our BINGER Super Wide Angle Eyepieces have advantages as below:Multilayer-coated lenses
and prisms reduce internal reflections and flare to produce sharp,clear views.Full Broadband Mulfiply
Coatings(FBMC) increase light transmission and color qualtiy,  resulting in a brighter,  higher- ontrast
image, with reduced eyestrain. Aspherical lens elements for bright,  clear images with well-balanced
colour and minimal distortion .



BINGER SUPER WIDE ANGLE LENS SWA26 MM FEATURE:
1.Super wide angle 70 degrees, high index glasses.
2.Super sharp, high contrast & excellent aberration correction,extremely high resolution.
3.Fully broadband multi-coating (FBMC)
4.Fold-down rubber eyecups, filter threads, blackened lens edges, anti-reflection threads
   for maximum contrast,
5.upper barrels are black anodized aluminum with a rubber grip ring.



Specification
Item No. BGSWA26 BGSWA10 BGSWA15 BGSWA20 BGSWA32 BGSWA38
Eye Relief(mm): 20 10 13 16 24 28
Coating: FBMC
Black end lens Edges: Yes
Rubber Eye Guard: Yes
Color black
Type eyepiece
Eyepiece series Super wide
Focal Length(mm): 26 10 15 20 32 38
Lens(#elements/#groups) 5/3 5/4 5/4 5/4 5/4 5/3
Grating field of view (mm) 32.3 12.8 18.8 25 40 45.7
Apparent Field of View: 70°
Filter Threads: Standard 1.25" Filter Thread (M25.8*0.6)
Height(inch): 2" 1 1/4 " 1 1/4 " 1 1/4 " 2" 2"
Brand: BINGER
